Terminator-style lenses — but only for rabbits

Scientists make first functioning bionic lens: prototype with single LED pixel, which can be worn by rabbits in lab.

Bionic contact lenses — which would display navigation data, personal emails, or any other sort of info superimposed on the world before your eyes — have long been mainstays of science fiction. Over the past several years, researchers have been working to make the tech real-world ready, striving to find solutions to the energy, size, safety, and image-quality problems that come up when you’re trying to fit a tiny integrated circuit into something transparent that sits on an eyeball.

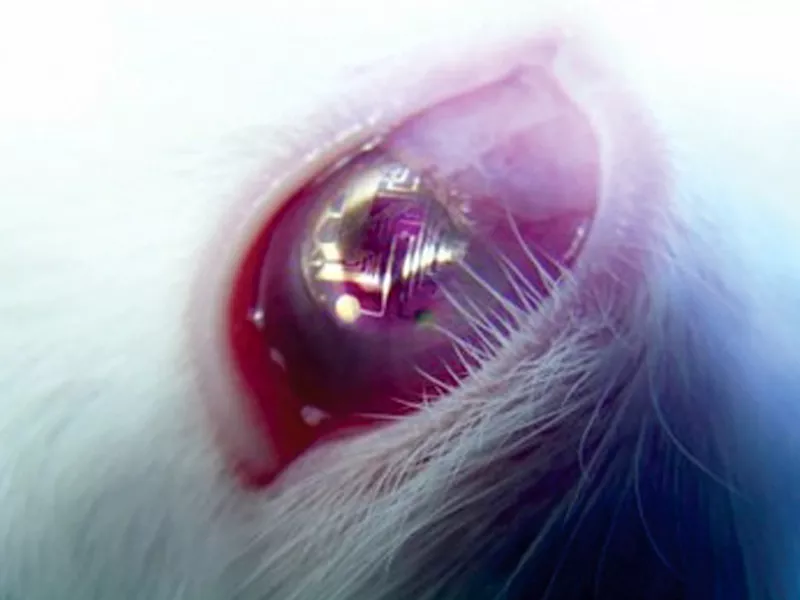

Now, University of Washington researchers and their Finnish colleagues have made the first functioning bionic lens: a prototype with a single LED pixel, which can be safely worn by rabbits in the lab.

Radio frequency energy emitted from a nearby transmitter and picked up by a circular antenna a fifth of an inch in diameter, printed on the lens, powered the electronics.

The transmitter supplied adequate energy from three feet away when the lens was sitting in a dish, but had to be less than an inch away when the lens was placed on a rabbit’s eye, since tissues and fluids in the body interfered with reception.

Since light from such a lens would be too close for the human eye to focus, the researchers made a separate contact composed of an array of smaller, flatter lenses, which would sit on top of the bionic contact and focus the light.

However, there are still some significant improvements that need to made before such lenses can display messages or integrate with navigation systems, including larger wireless range, higher pixel count and human safety tests.

But even a single-pixel bionic lens, the researchers wrote, “could be used in gaming, training, or giving warnings to the hearing impaired.” SOURCE: blogs.discovermagazine.com

Published in The Express Tribune, November 26^th, 2011.
